For this Classical Comments piece we will deal with some architectural minutiae—the transition from Roman-style moldings to Greek ones that took place in the late 18th century. Until the publication in 1762 of the first volume of James Stuart and Nicholas Revett’s The Antiquities of Athens virtually all 18th-century molding profiles in both Britain and America adhered strictly to ancient Roman versions as depicted in the Renaissance treatises of Palladio, Vignola, Scamozzi and others. For their sources these architects measured and published the examples close at hand, which were in abundance in the Roman ruins around them. High-style Greek ruins were all but inaccessible for study, Greece having succumbed to unwelcoming Ottoman rule with the fall of Constantinople in 1453.

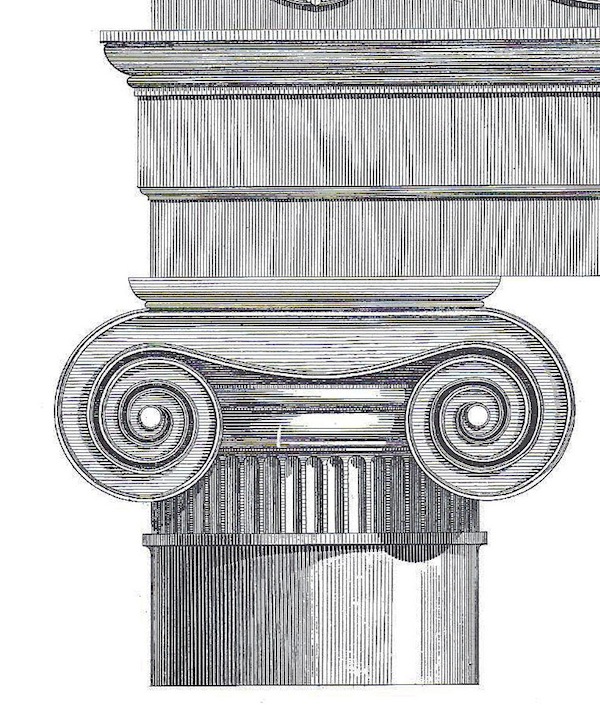

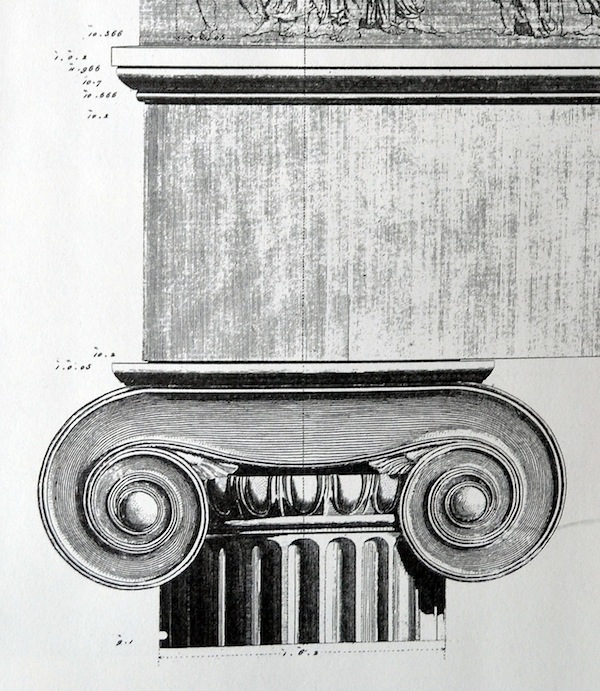

Britons were introduced to the elegance and complexity of Greek moldings with the appearance in 1762 of the first volume of Stuart and Revett’s The Antiquities of Athens. This monumental undertaking, with its numerous engravings of plans, elevations, details, and conjectural restorations, made an indelible impression on the British architectural community and marked the birth of the Greek Revival movement. Pictured in the first volume were several plates pertaining to the Ionic temple on the Ilissus River in Athens. In a detail of the temple’s capital and entablature, the abacus has the profile of a quirked ovolo instead of the straight-sided slab typical of Roman orders. (Figure 6) A quirked ovolo is an ovolo that takes the form of an ellipse and turns inward towards the top, leaving a small space between it and the member above it. Since the curve of an ellipse is complex, requiring several radii to define it, it can take many different profiles from boldly curved to tightly compressed. Another quirked ovolo is seen supporting the taenia.
Robert Adam was among the first British architects to incorporate Greek moldings and other Grecian details in his designs. In Volume I of The Works in Architecture of Robert and James Adam, Esquires (1778) Adam stated his partiality for Greek moldings.
The mouldings in the remaining structures of antient Rome are considerably less curvelineal than those of antient monuments of Greece. We have always given preference to the latter, and have even thought it adviseable to bend them still more in many cases, particularly in interior furnishings, where objects are near, and ought to be softened to the eye. . .

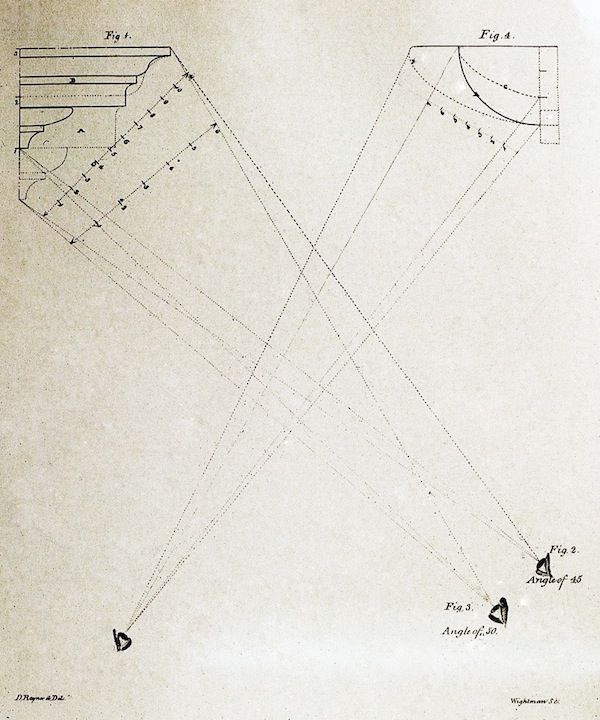

Boston architect Asher Benjamin can be credited with being America’s earliest and most energetic promoter of Greek classicism. In the 1806 first edition of The American Builder’s Companion, Benjamin offered an interestingly curious illustration to demonstrate the visual superiority of a cornice of Greek moldings over Roman moldings. (Figure 8) He elucidates as follows:
A is a Tuscan cornice copied from Langley, [A is the dotted line] and seen at an angle of forty five degrees from the horizon, (Fig. 2) which is the angle cornices are commonly seen at. B is a modern cornice, which is only two thirds of the height. This experiment proves, that a cornice, when seen at the angle of forty five degrees, may be diminished one third of its height, and appear to the spectator to be diminished only two elevenths; and when seen at an angle of fifty degrees, (Fig. 3) which is a little nearer to the building, it may be diminished one third, and appear to be diminished one sixth . . . which will make a saving of at least one fourth of the expense, beside having so much of the height of the wall of the whole building, and at the same time have a lighter and better appearance.
Referring to Fig. 4 on that same plate, Benjamin writes:
A [the solid-line molding] is an ovolo, or quarter round, which is commonly used in the orders. The figure shows the advantage of quirked mouldings. Beside looking better, their size may be increased one third without increasing their height, as seen by B [left dotted line] ; or their height may be diminished one third, without appearing much less, as seen by C.[right dotted line]
In Plate eleven of the 1827 edition of The American Builder’s Companion, Benjamin illustrated several examples of quirked ovolos. (Figure 9) He noted that the molding can be part of an ellipse or a parabola. Benjamin praised Greek design ingenuity, stating:
In the Roman ovolo there is no turning inward, at the top; therefore, when the sun shines on its surface, it will not be so bright, on its upper edge, as the Grecian ovolo; nor will it cause so beautiful a line of distinction from the other moldings, with which it is combined, when it is in shadow, and when lighted by reflection.
The various radii making up each molding in Benjamin’s plate are seen in the dotted lines and reveal the complex sophistication of Greek moldings.

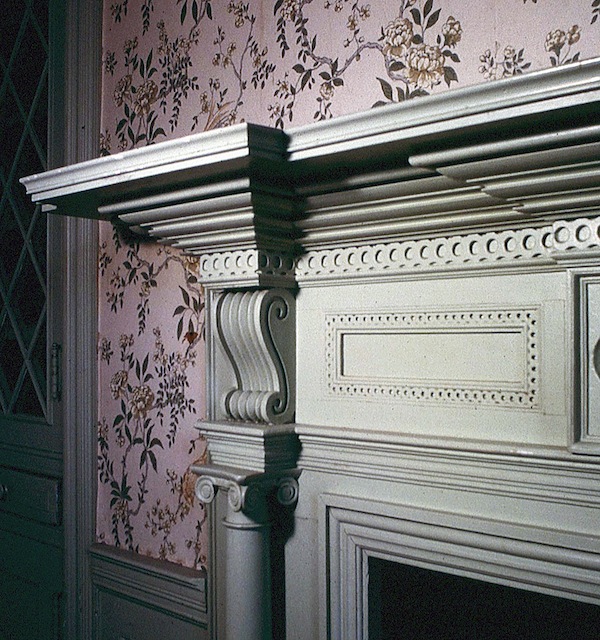

In some rural Greek Revival houses it is not unusual to see an assertive series of sharply projecting quirked ovolos forming a mantel’s bed moldings. A characteristic example of this ambitious treatment is found in Glen Maury, an 1831 plantation house in Buena Vista, Virginia. (Figure 15) Although it’s tempting to assume this is the product of a craftsman’s overzealous imagination, it’s more likely that these moldings were inspired by illustrations of arrises found below the echinus on the typical Greek Doric capital. We see these arrises on a detail of the Doric order published by the New York architect Minard Lafever in The Modern Builder’s Guide (1833), one of many American design books promoting the Grecian style. (Figure 16) In his preface, Lafever acknowledged his source: “Messrs. Stuart and Revett of London; from whose highly valuable and popular work entitled ‘The Antiquities of Athens,’ I have borrowed the article relating to the ancient Orders of Architecture.”
Although Greek moldings continued in use into the third quarter of the 19th century, they soon passed out of fashion in favor of more complex Italianate and Gothic-style moldings. They all but disappeared from use in the early 20th century with the widespread popularity of the Colonial Revival movement, which brought about a resurgence of Roman moldings imitating 18th-century practice. Nevertheless, following Asher Benjamin’s observations, we should not discount the value of Greek moldings for adding a distinctive aesthetic quality to contemporary classical design.
 Partricia Ann Lowe, Volumes that Speak: The Architectural Books of Drayton Library Catalog and the Design of Drayton Hall (Clemson University and the College of Charleston Master’s Thesis. May, 2010).
 The tiny temple has since been destroyed.
 Robert and James Adam, The Works in Architecture of Robert and James Adam; (Dover Publications, 2006) p. 6.
 Asher Benjamin, The American Builder’s Companion (Boston, 1806) p. 29.
 Benjamin, p. 29.
 Benjamin, The American Builder’s Companion (sixth edition; Boston, 1827) p. 20.
 Minard Lafever, The Modern Builder’s Guide, p. 3-4.
